Kranzle 1622 TS Breakdowns and Parts Lists

Explore the images and parts breakdowns below to identify the part you need, then order direct.

eCommerce page: www.dirtkiller.com/

1122TST Primary parts diagram

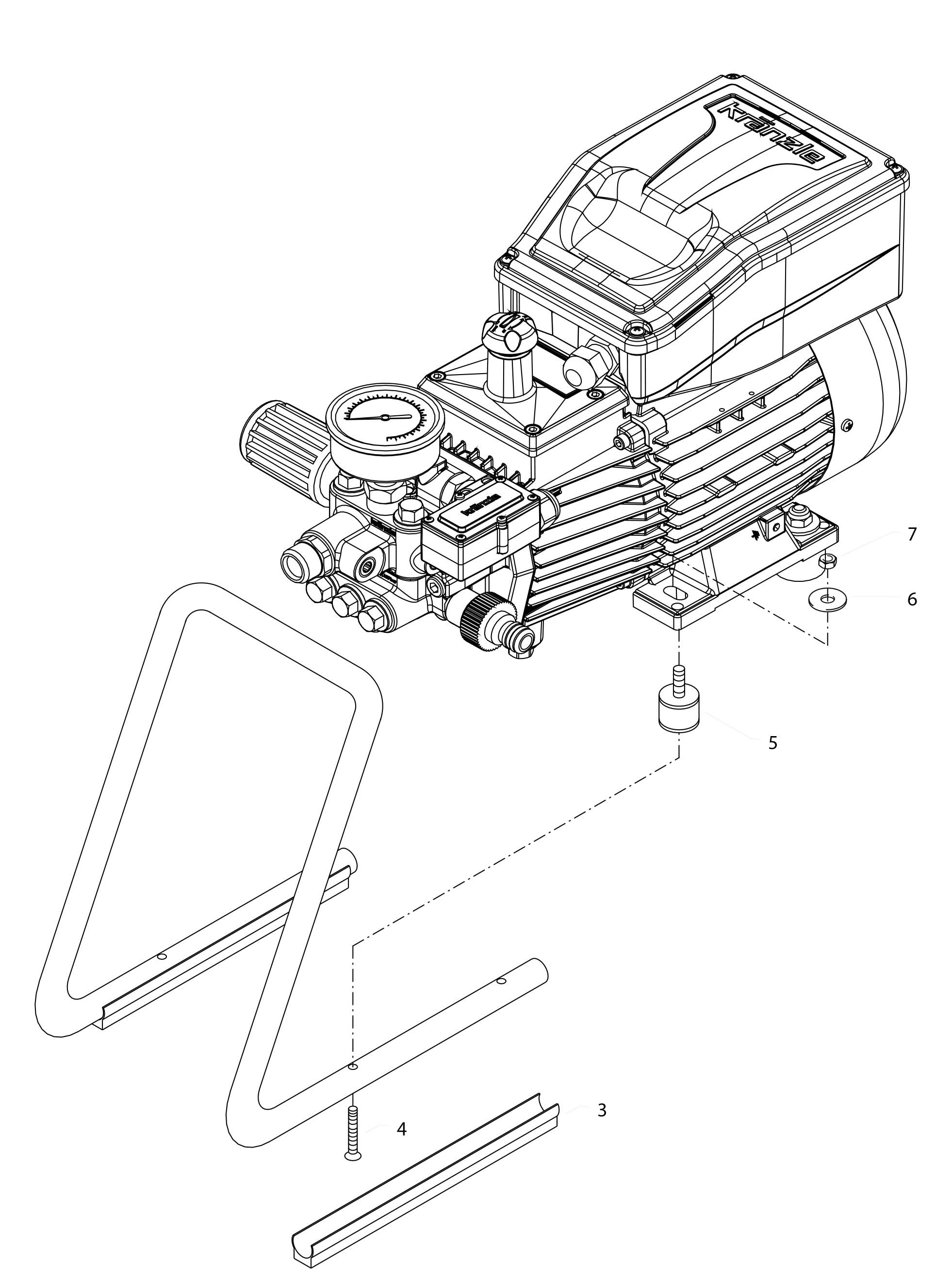

Complete Unit Spare Parts

# Part Name German Part # Kranzle USA Part #
2 Mounting Bracket 44581 Special Order
3 Rubbber Profile Strip 410981 Special Order
4 Countersunk Screw, M6 x 20 434731 Special Order
5 Rubber Bumper, 30 x 20 460231 97460231 Buy Now

Full Parts List >>
1122TST Primary parts diagram

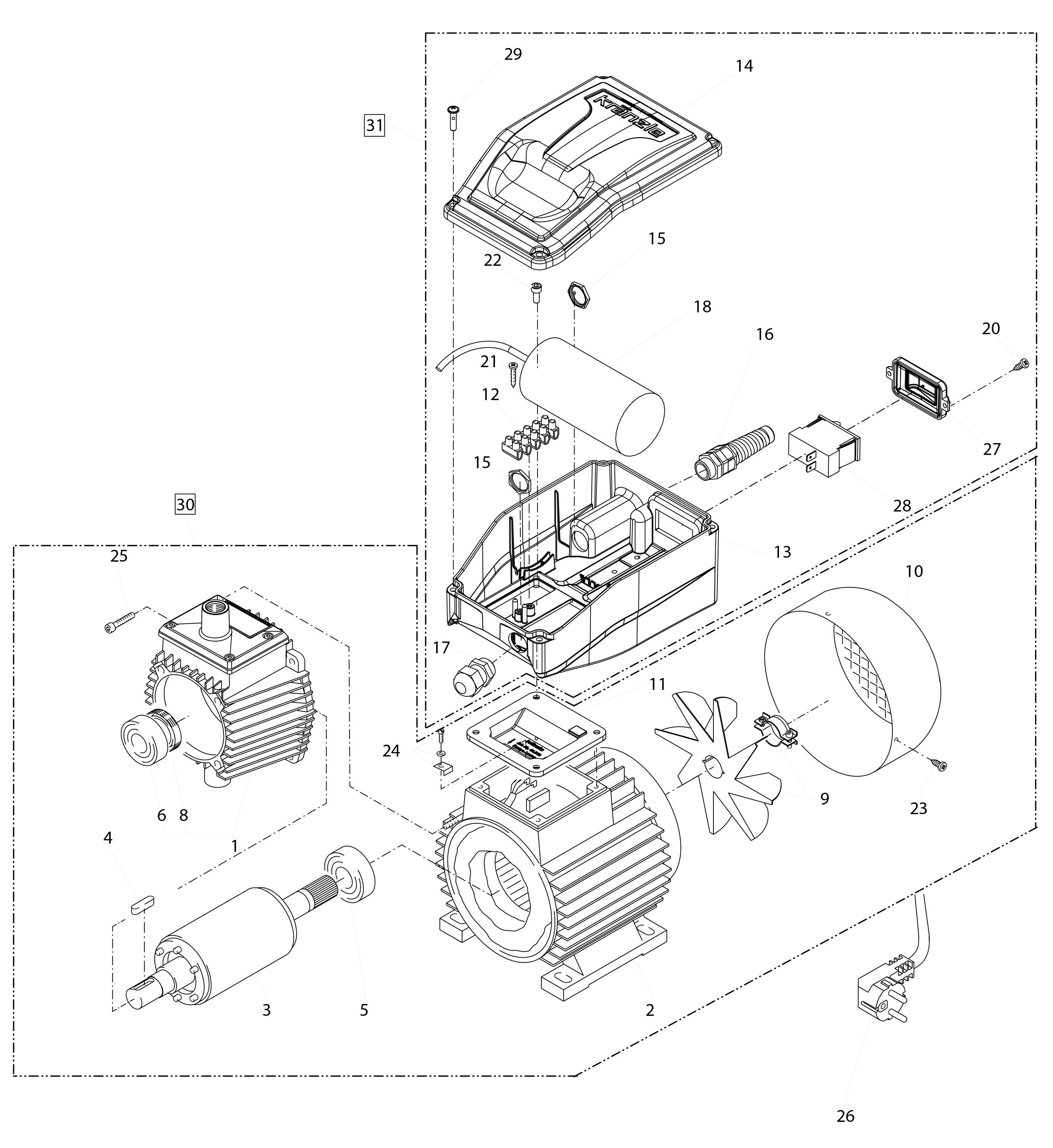

Motor Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Transmission Housing 44501 9744501 Buy Now
2 Stator 230022 Special Order
3 Motor Shaft with Rotor 43104 Special Order
4 Feather Key 6 x 6 x 20 414831 97414831 Buy Now

Full Parts List >>
1122TST Primary parts diagram

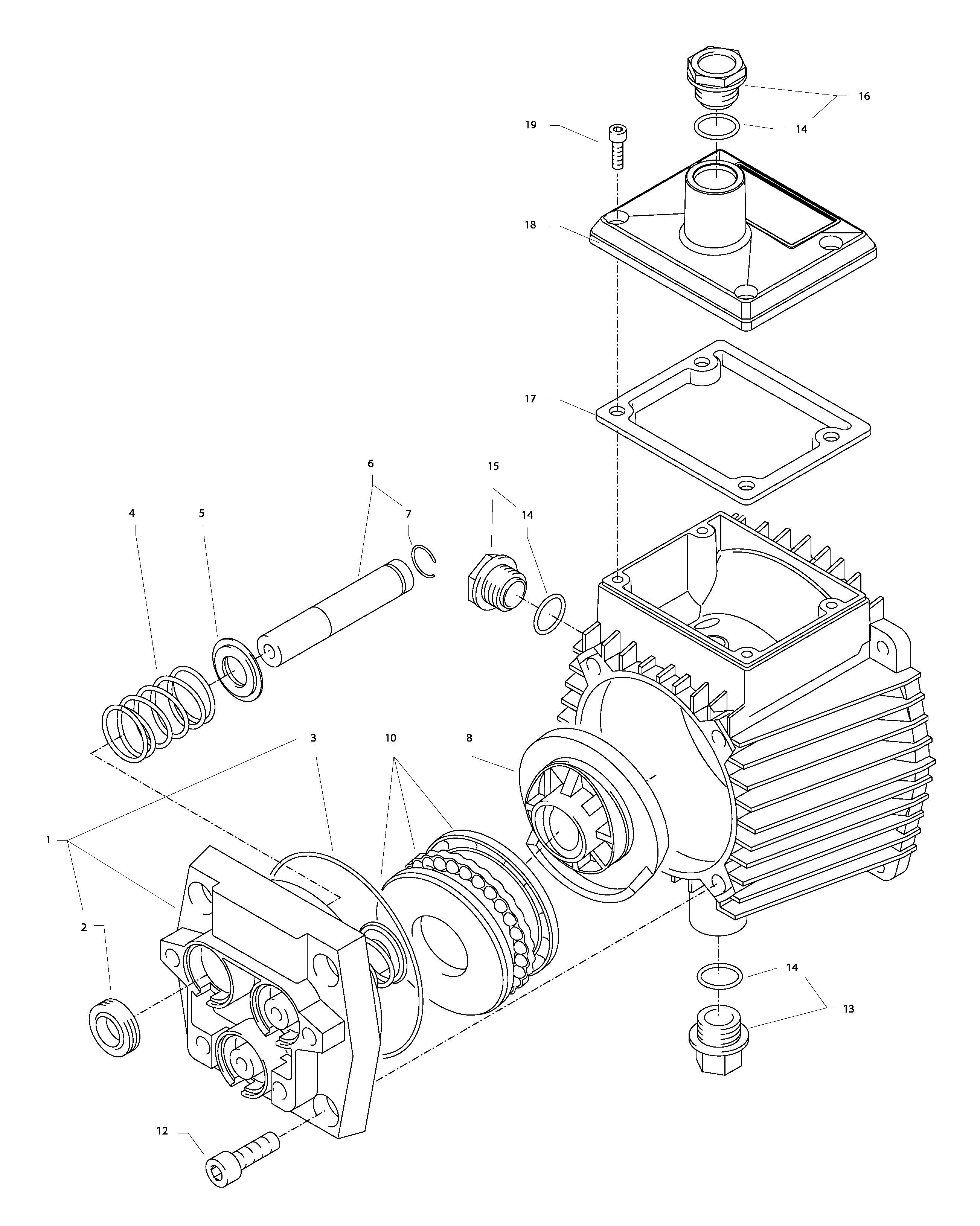

Transmission Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Housing Plate 43003 9743003 Buy Now
2 Oil Seal 41631 9741631 Buy Now
3 O-Ring, 83 x 2 43039 9743039 Buy Now
4 Plunger Spring 43040 9743040 Buy Now
5 Spring Pressure Washer, 14 mm 43041 9743041 Buy Now
6 Plunger, 14 mm 49021 9749021 Buy Now

Full Parts List >>
1122TST Primary parts diagram

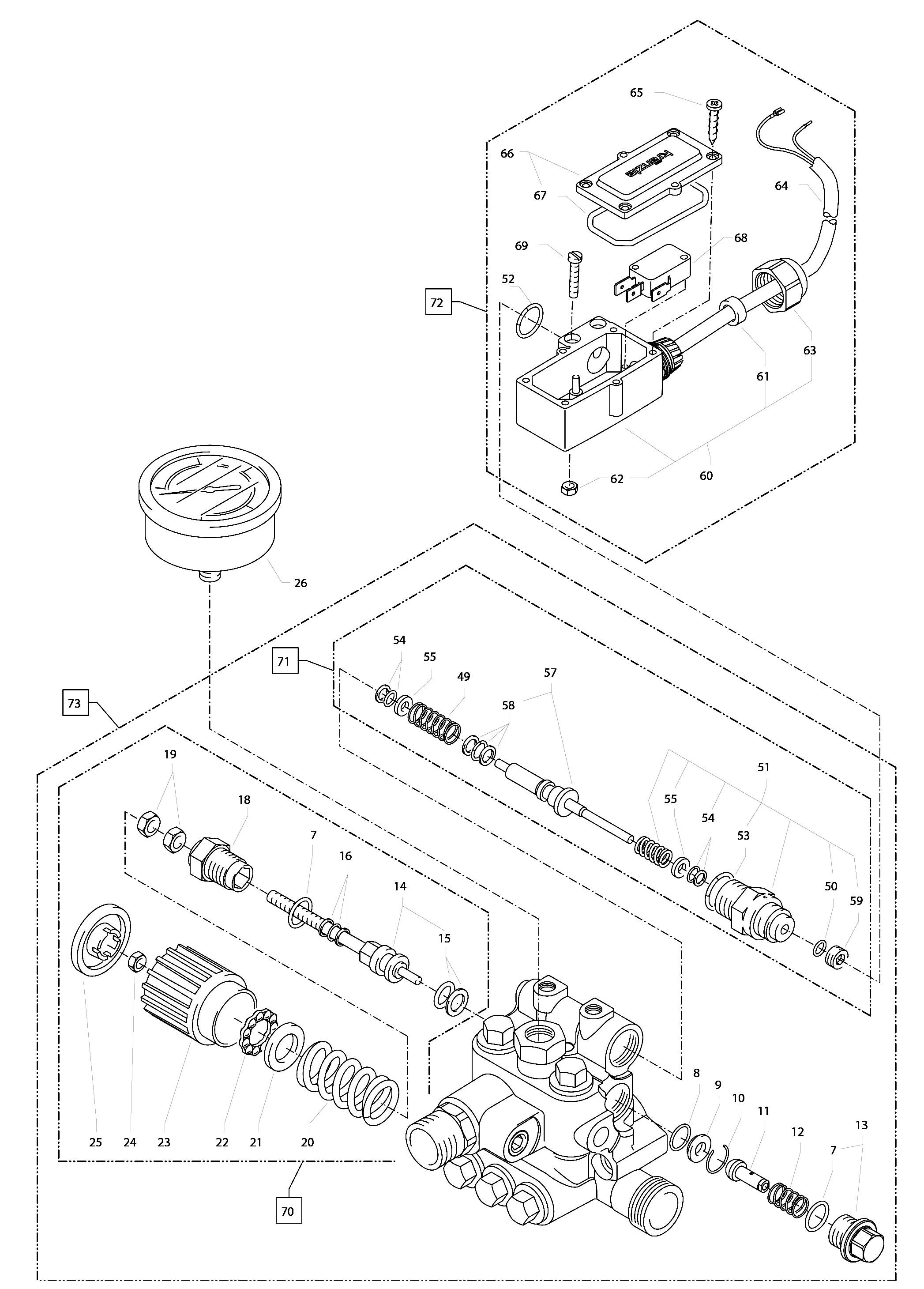

Valve Housing Spare Parts

# Part Name German Part # Kranzle USA Part #
7 O-Ring, 12 x 2 150051 97150051 Buy Now
8 O-Ring, 11 x 1.5 12256 9712256 Buy Now
9 Stainless Steel Seat 14118 9714118 Buy Now
10 Locking Ring 13147 9713147 Buy Now
11 Start-Up Relief Valve 490411 97490411 Buy Now
12 Stainless Steel Spring 49042 Special Order
13 Brass Plug 49043 Special Order

Full Parts List >>
1122TST Primary parts diagram

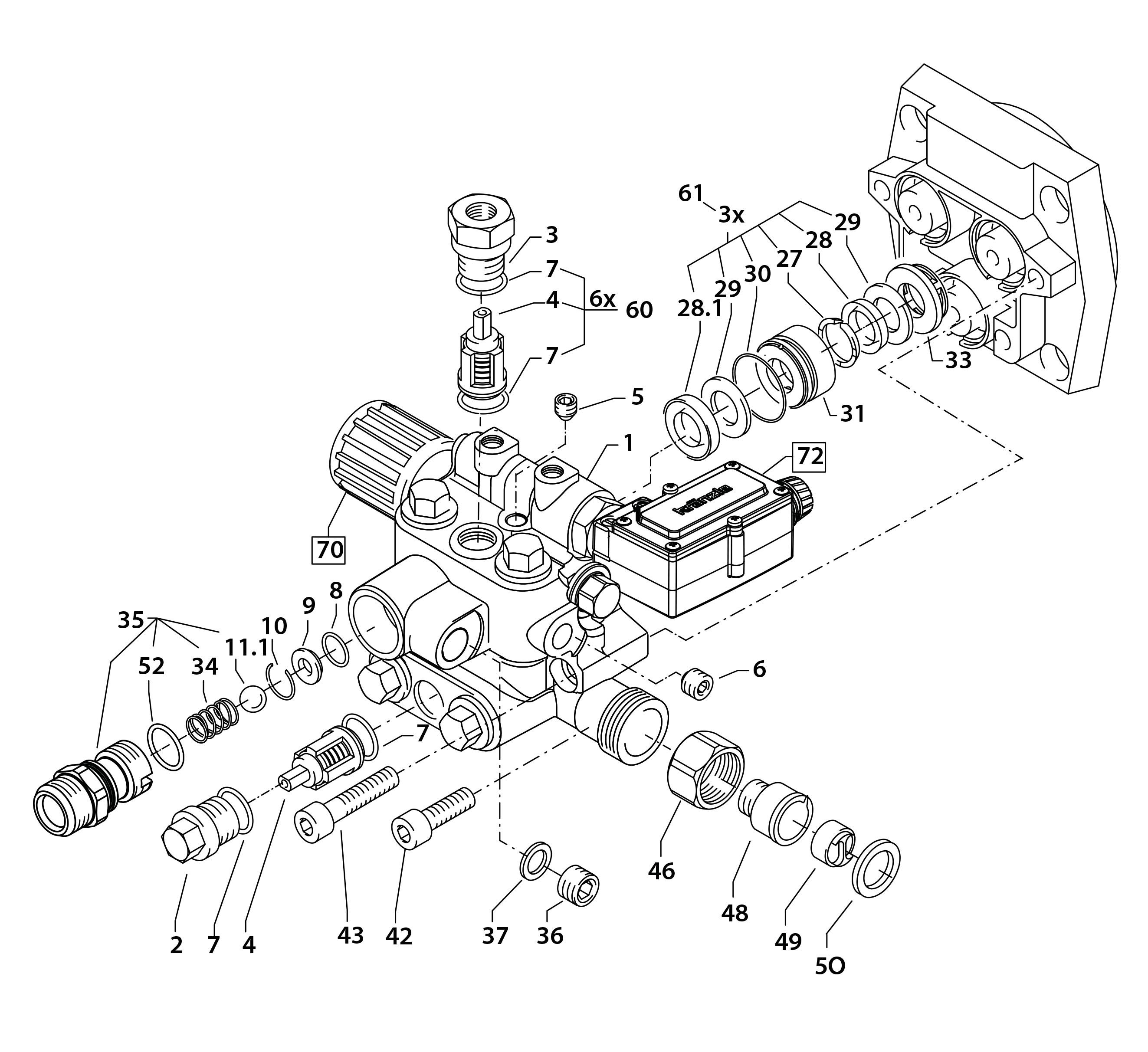

Valve Body Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Valve Body 490262 Special Order
2 Valve Plug 41011 Buy Now
3 Valve Plug with R 1/4 in IG 410111 Special Order
4 Valve, Green 416121 Special Order

Full Parts List >>
1122TST Primary parts diagram

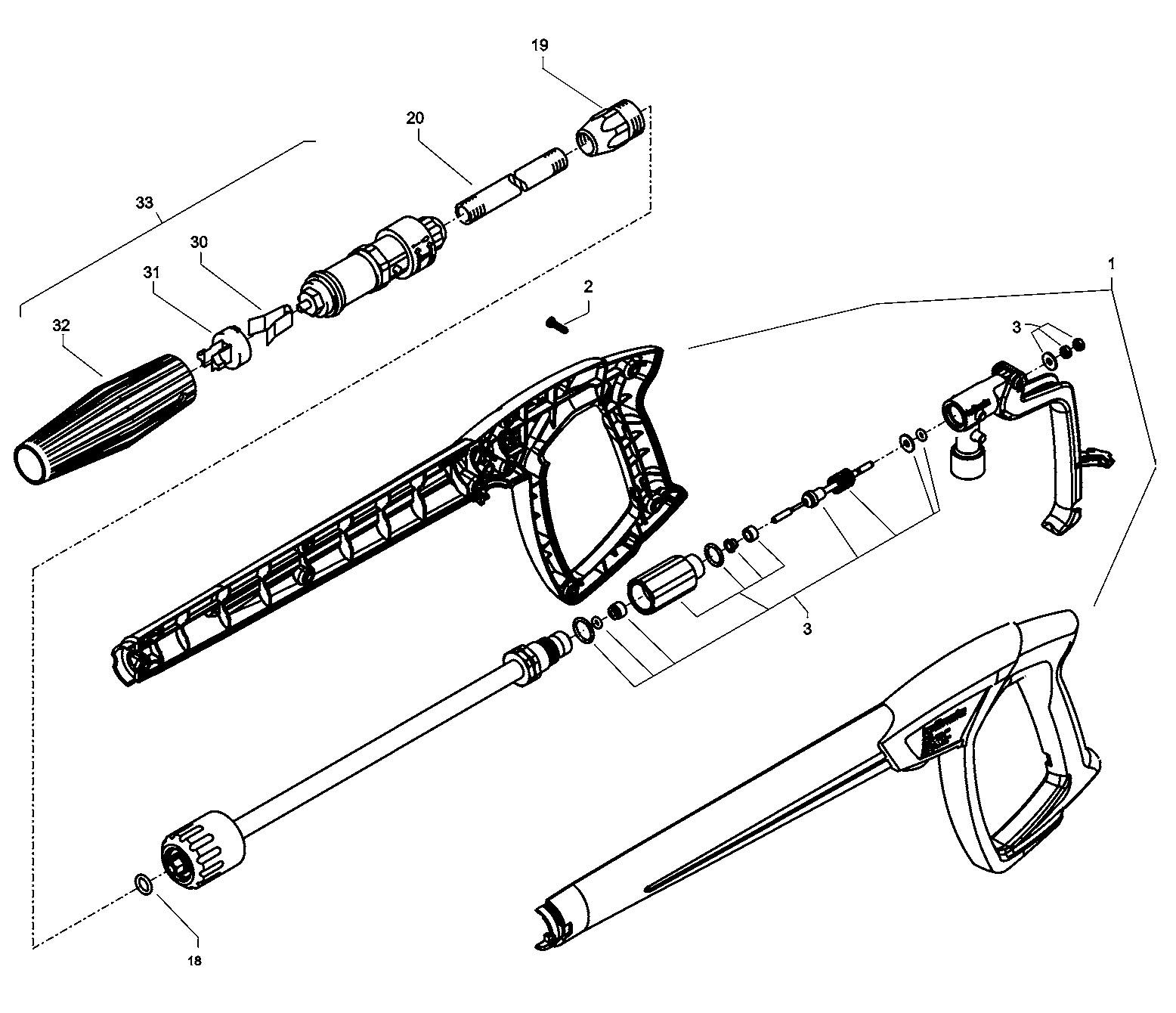

Gun-Jet and Lance Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Gun-Jet Shell (Right and Left) 12.450 Special Order
2 Screw, 3.5 x 14 44.525 Special Order
3 Repair Kit for M2000 12.454 Special Order
18 O-Ring, 9.3 x 2.4 13.273 9713273 Buy Now
19 Nipple, M22 x 1.5 AG / M12 x 1 13.363 9713363 Buy Now

Full Parts List >>
1122TST Primary parts diagram

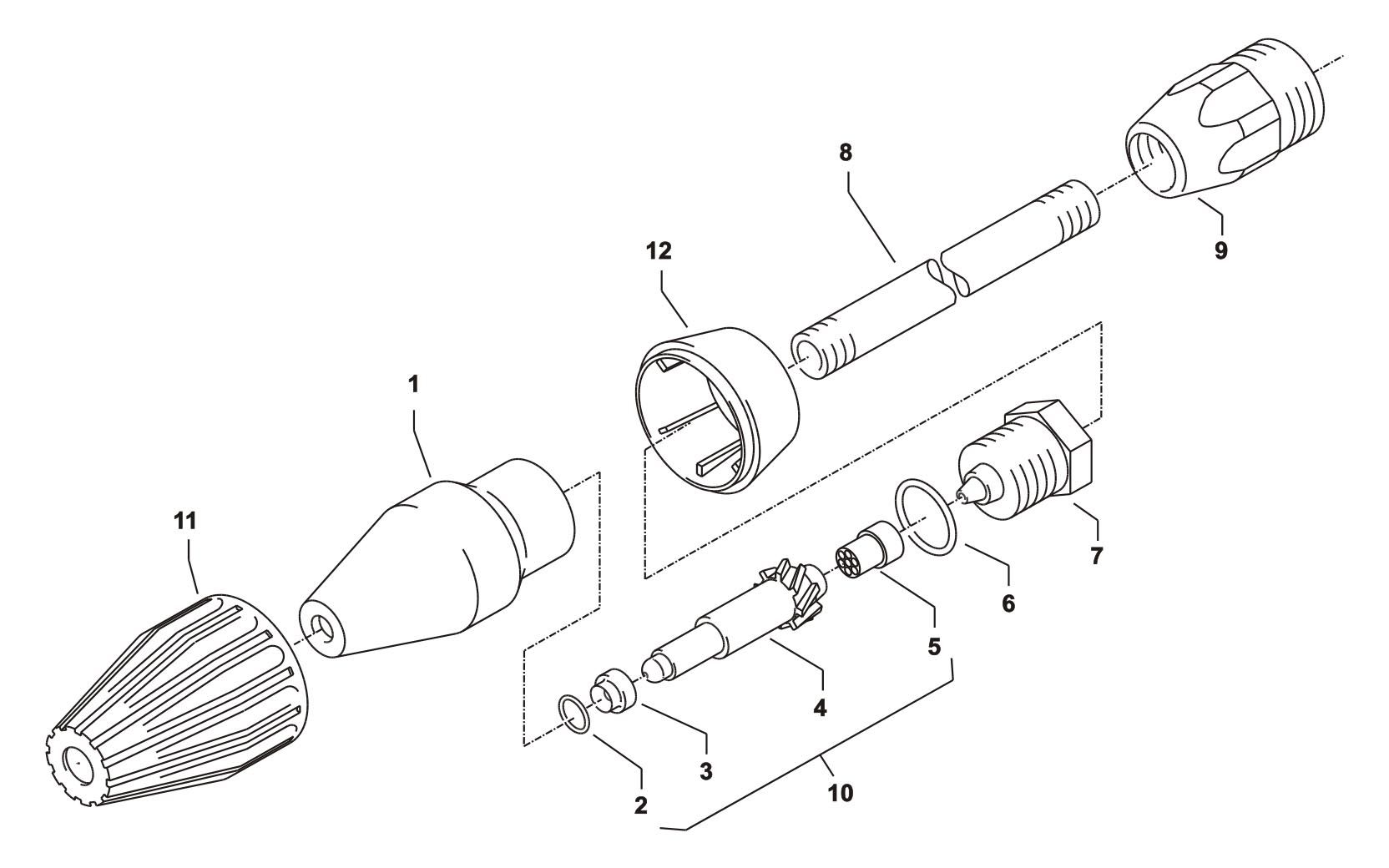

Dirt Killer Nozzle Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Spray Body 41.520 9741520 Buy Now
2 O-Ring, 6.86 x 1.78 41.521 9741521 Buy Now
3 Nozzle Seat 41.522 9741522 Buy Now
4 Nozzle Insert, 028 41.523-028 Special Order
5 Stabilizer 41.524 9741524 Buy Now
6 O-Ring, 16 x 2 40.016 1 97400161 Buy Now

Full Parts List >>
