1622 TS Dirt Killer Nozzle

Spare Parts

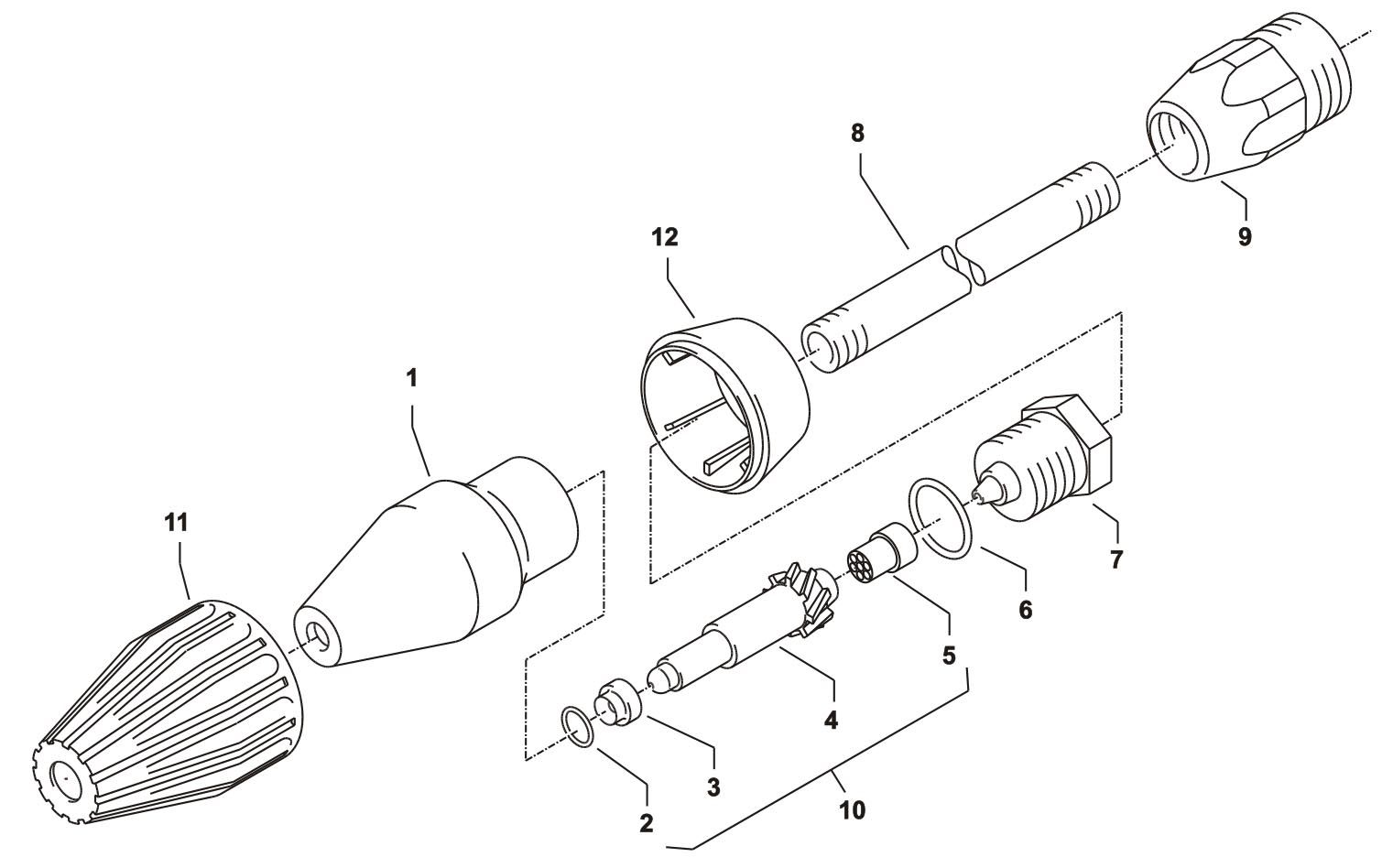

Diagram from page 30 of user manual - scroll down to match number to part

Manuals > 1622 TSDirt Killer Nozzle Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Spray Body 41.520 9741520 Buy Now
2 O-Ring, 6.86 x 1.78 41.521 9741521 Buy Now
3 Nozzle Seat 41.522 9741522 Buy Now
4 Nozzle Insert, 028 41.523-028 Special Order
5 Stabilizer 41.524 9741524 Buy Now
6 O-Ring, 16 x 2 40.016 1 97400161 Buy Now
7 Spray Stopper 41.526 Special Order
8 Pipe, 500 mm, 2 x M12 x 1 41.527 1 Special Order

Manuals
1622 TS   >   Dirt Killer Nozzle Spare Parts

#Part NameGerman Part #Kranzle USA Part #
9Coupling Nipple, M22 x 1.5 / M12 x 113.3639713363Buy Now
11Front Cap (Head Cover)41.528 197415281Buy Now
12Rear Cap (Rear Cover)41.540 297415402Buy Now
Repair Kit for Dirt Killer Nozzle 02841.096 4Special Order
Dirt Killer Nozzle 028 on Lance41.570-028Special Order
