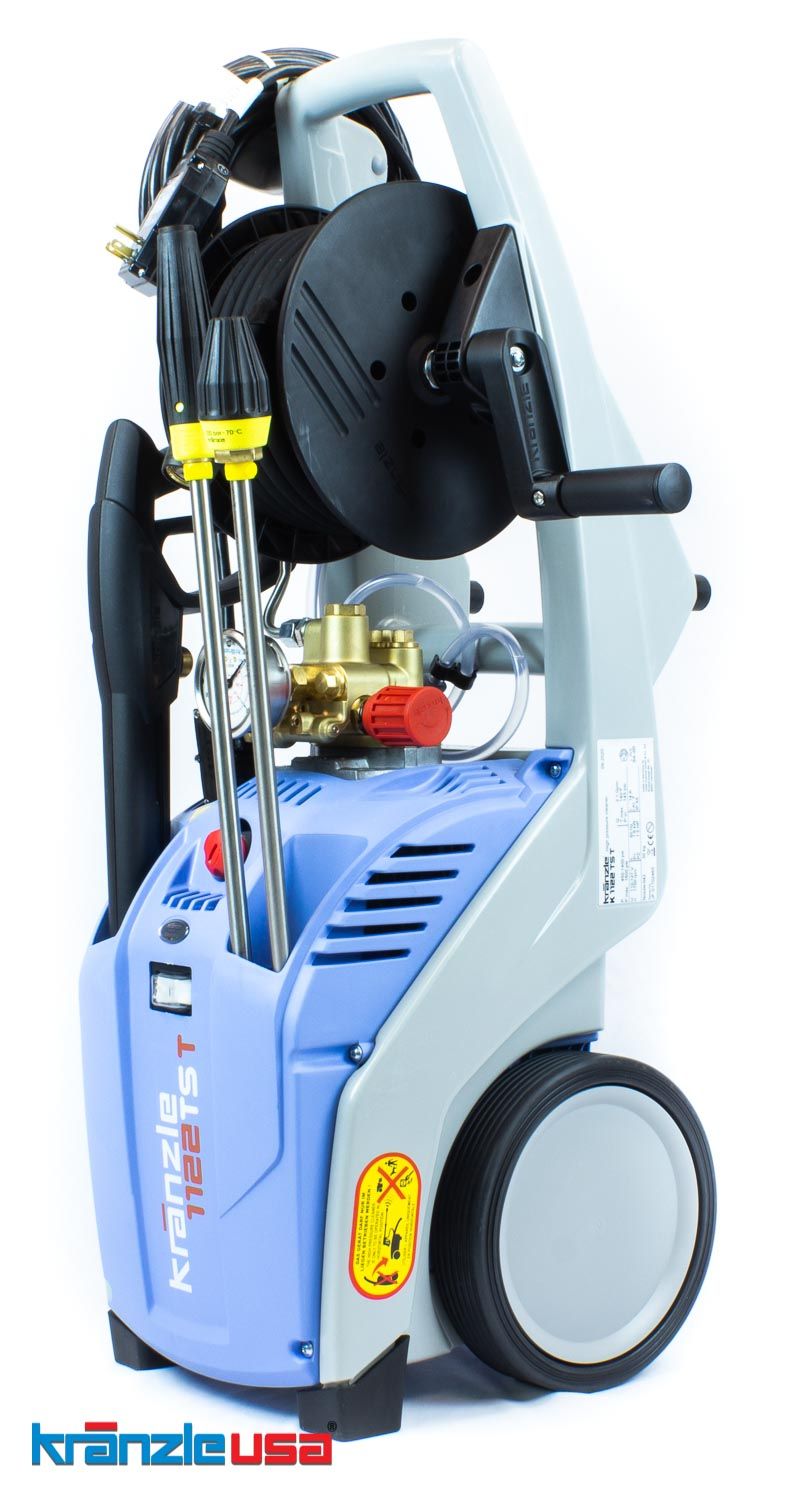

Kranzle 1122TST Breakdowns and Parts Lists

Explore the images and parts breakdowns below to identify the part you need, then order direct.

1122TST Primary parts diagram

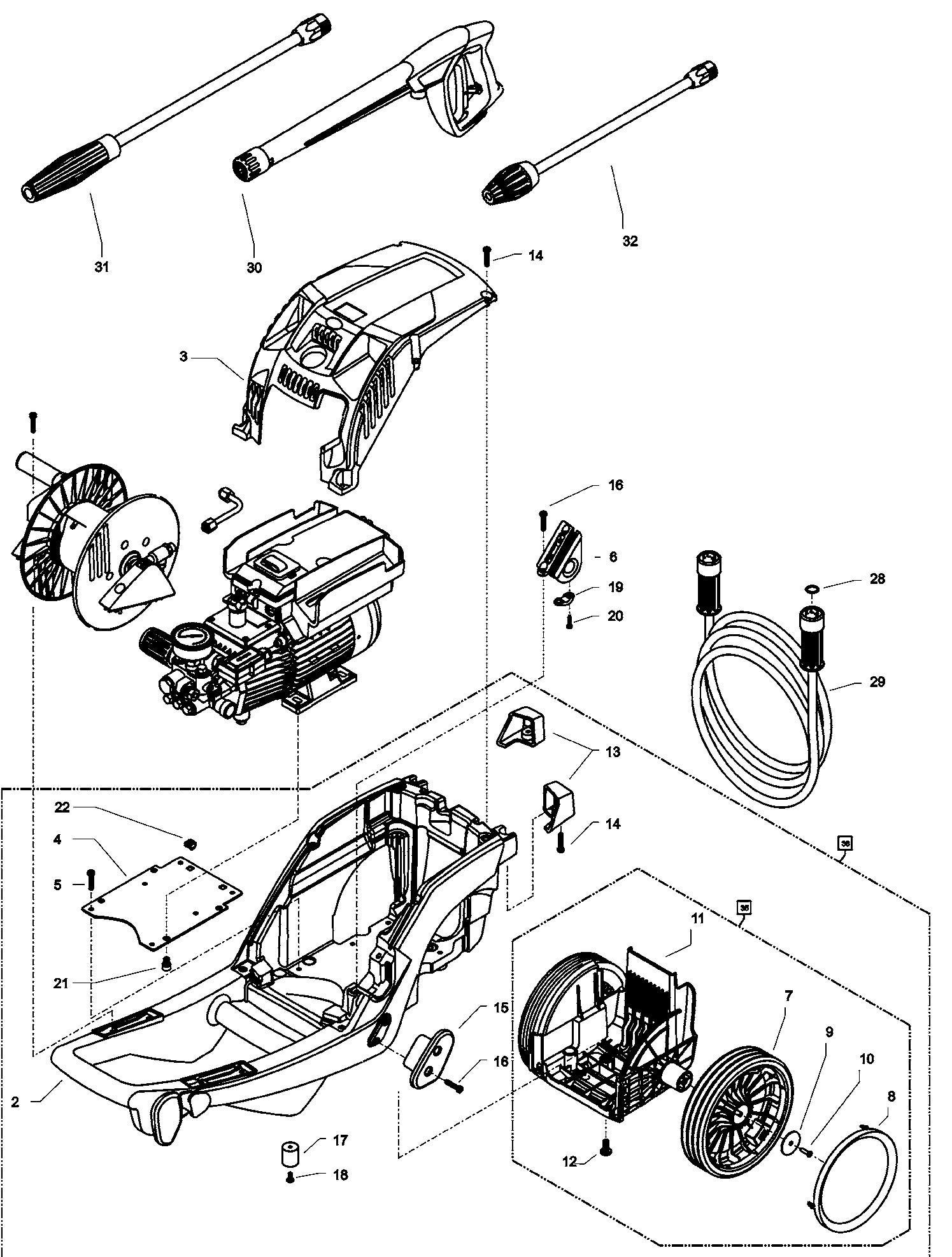

Complete Unit Spare Parts

# Part Name German Part # Kranzle USA Part #
2 Chassis 49.000 9749000 Buy Now
3 Front Cover Plate 49.007 2 97490072 Buy Now
4 Stiffening Plate 49.008 9749008 Special Order
5 Plastic Screw, 6.0 x 30 43.423 9743423 Special Order
6 Cable Trumpet 49.003 9749003 Special Order
7 Wheel 44.538 9744538 Buy Now
8 Wheel Cap 45.200 8 97452008 Special Order
9 Washer, 40 x 60 x 1.5 45.216 7 97452167 Special Order

Full Parts List >>
1122TST Primary parts diagram

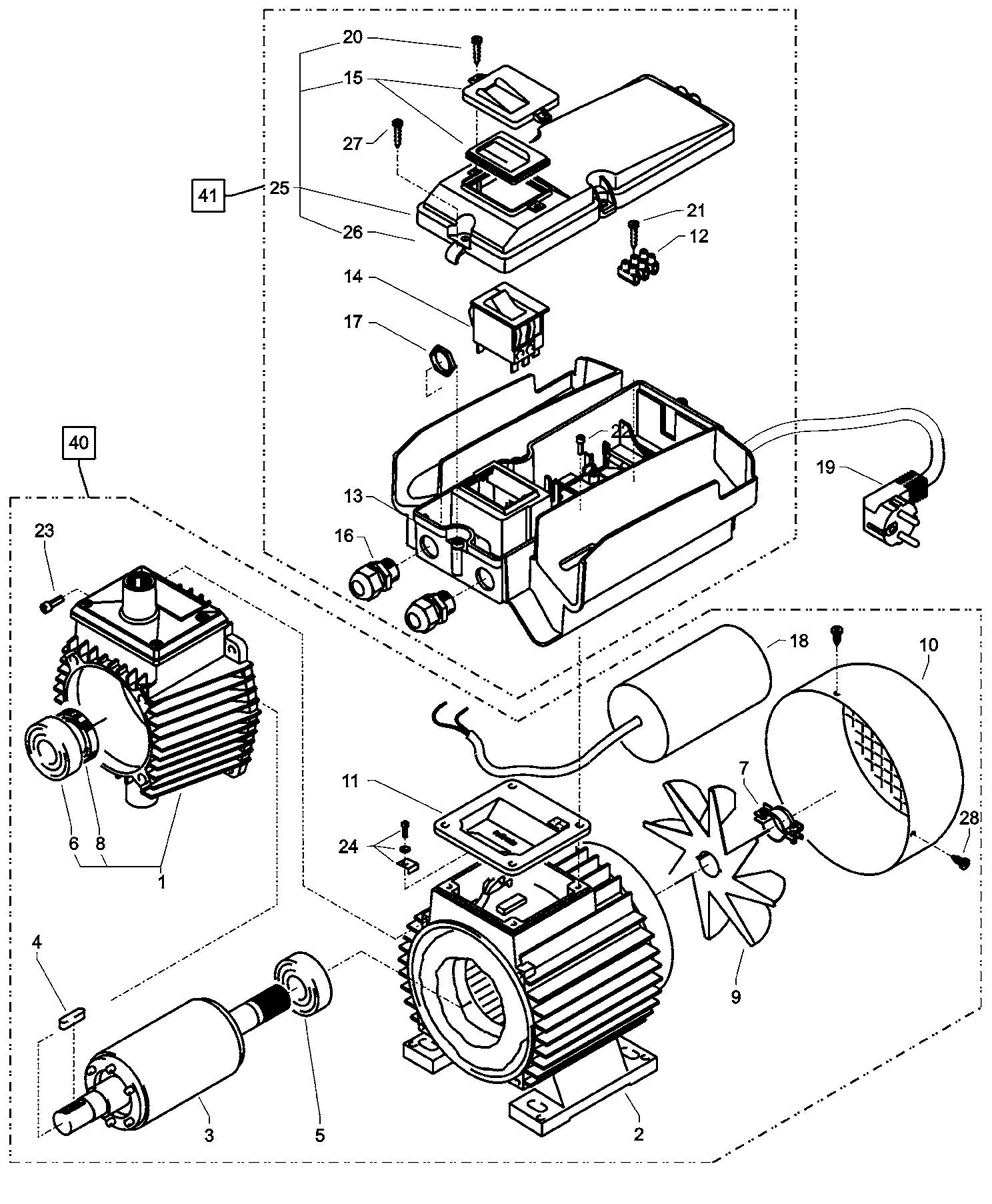

Motor Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Transmission Housing 44.501 9744501 Special Order
2 Motor Housing 23.002 2 97230022 Special Order
3 Motor Shaft 43.104 9743104 Special Order
4 Feather Key 41.483 1 97414831 Buy Now
5 Motor Bearing, B-Side 43.025 9743025 Buy Now
6 Motor Bearing, A-Side 43.026 9743026 Buy Now
7 Motor Fan Clamp 44.534 1 97445341 Special Order
8 Oil Seal, 25 x 35 x 7 41.024 9741024 Buy Now

Full Parts List >>
1122TST Primary parts diagram

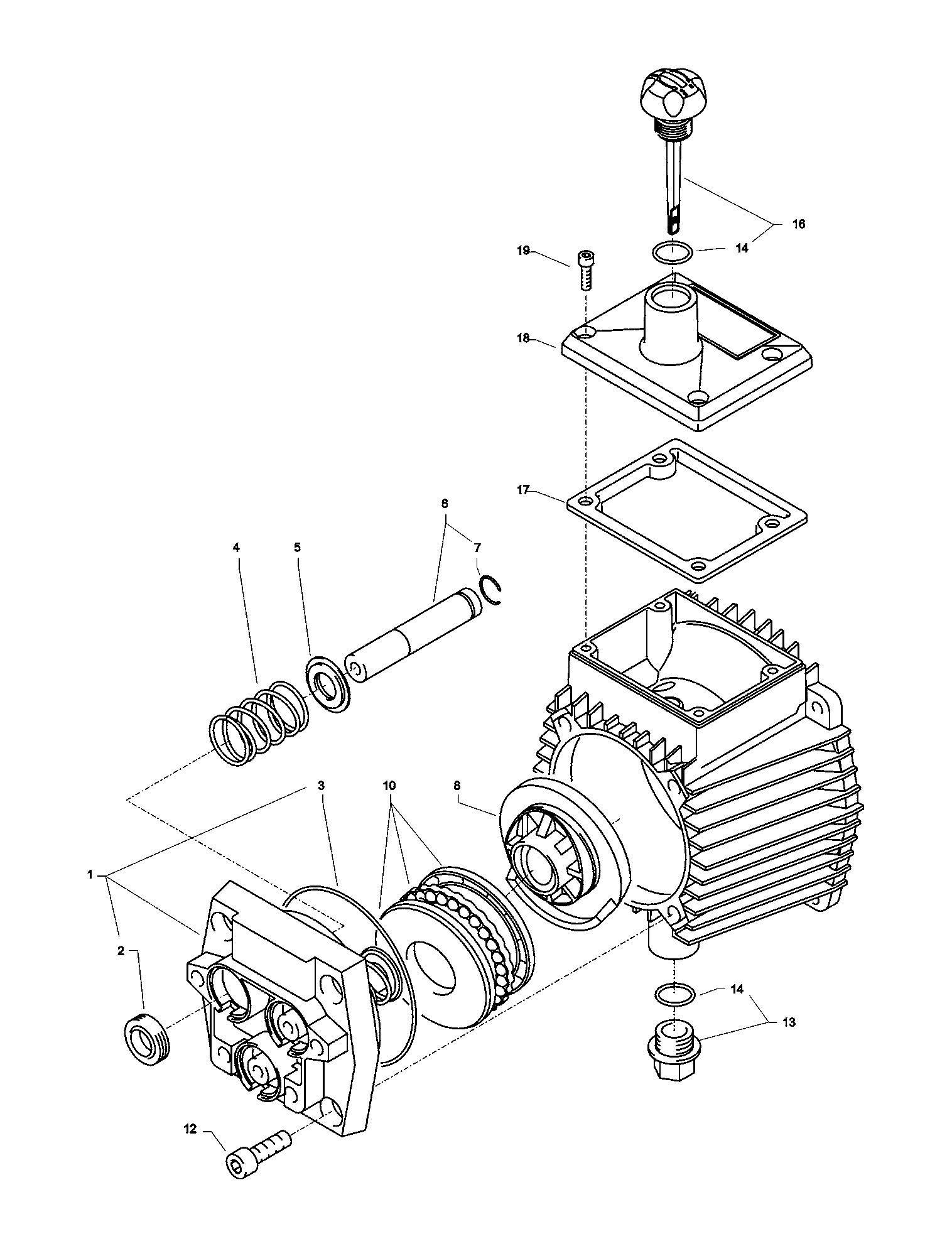

Transmission Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Housing Plate 43.003 9743003 Buy Now
2 Oil Seal 41.631 9741631 Buy Now
3 O-Ring, 83 x 2 43.039 9743039 Buy Now
4 Plunger Spring 43.040 9743040 Buy Now
5 Spring Pressure Washer, 14 mm 43.041 9743041 Buy Now
6 Plunger, 14 mm 49.021 9749021 Buy Now
7 Snap Ring, 14 mm 41.635 9741635 Buy Now
8 Swashplate, 12.1 degrees 41.028-12,1 9741028121 Special Order

Full Parts List >>
1122TST Primary parts diagram

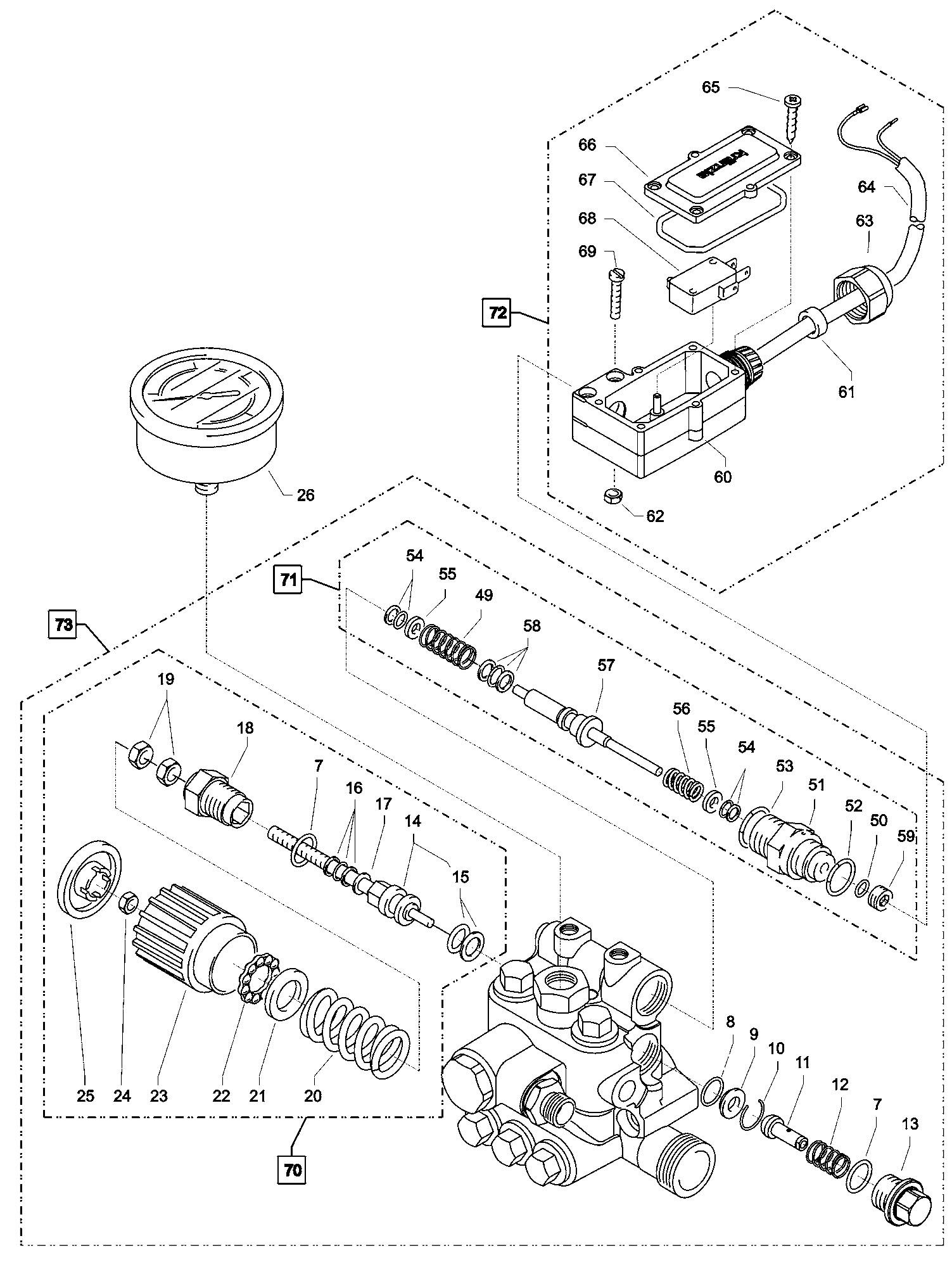

Unloader and Pressure Switch Spare Parts

# Part Name German Part # Kranzle USA Part #
7 O-Ring, 12 x 2 15.005 1 97150051 Buy Now
8 O-Ring, 11 x 1.5 12.256 9712256 Buy Now
9 Stainless Steel Seat 14.118 9714118 Buy Now
10 Locking Ring 12.258 Special Order
11 Start-Up Relief Valve Special Order
12 Stainless Steel Spring Special Order
13 Brass Plug Special Order
14 Unloader Control Piston (with Seals) 44.532 9744532 Buy Now

Full Parts List >>
1122TST Primary parts diagram

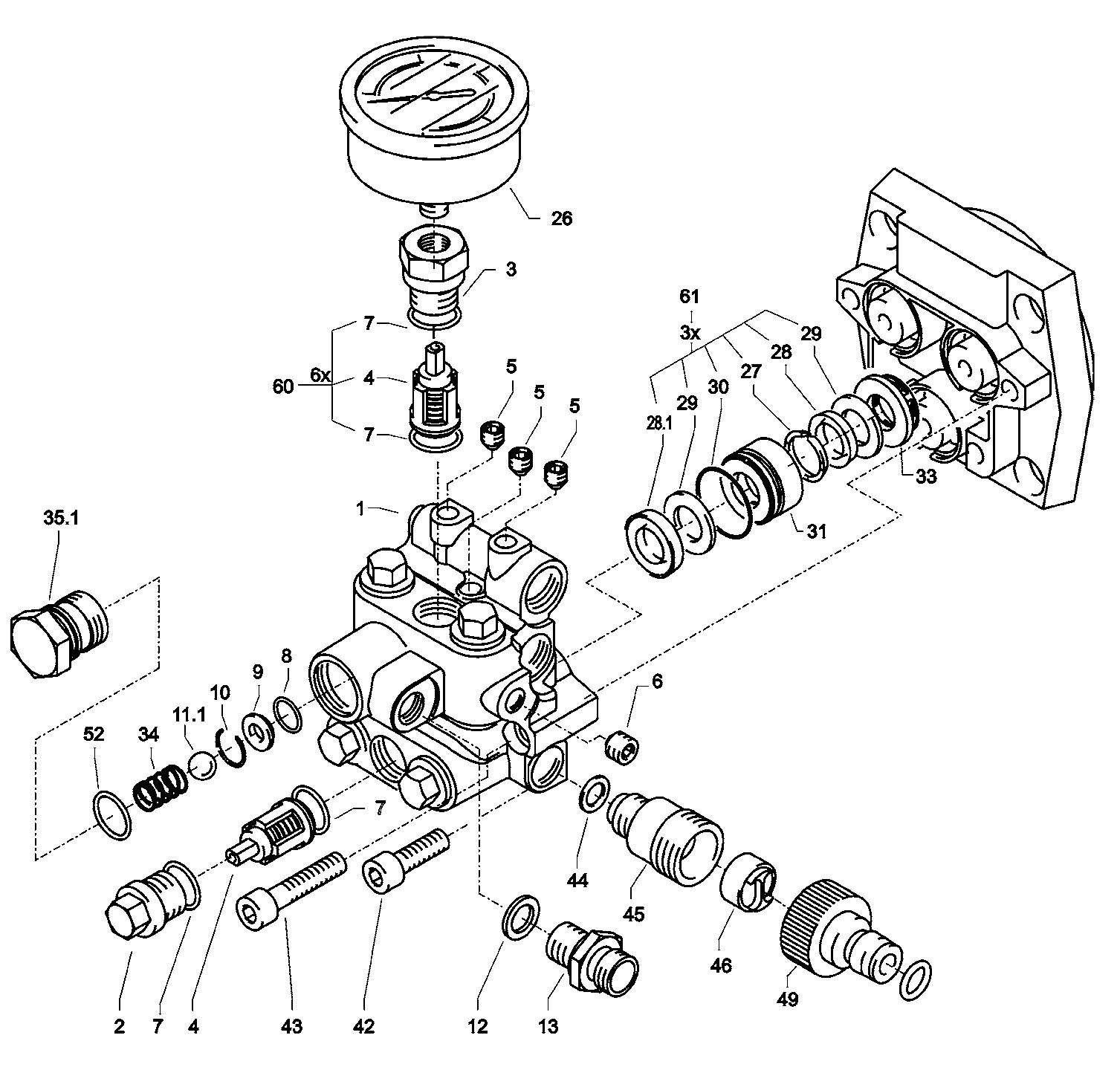

Valve Body Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Valve Body 49.020 Special Order
2 Valve Plug 41.011 Buy Now
3 Valve Plug with R 1/4 41.011 1 Special Order
4 Valve, Green 41.612 1 Special Order
5 Sealing Plug, M8 x 1 13.158 9713158 Buy Now
6 Sealing Plug, M10 x 1 43.043 Special Order
7 O-Ring, 12 x 2 15.005 1 97150051 Buy Now
8 O-Ring, 11 x 1.5 12.256 9712256 Buy Now

Full Parts List >>
1122TST Primary parts diagram

Hose Reel Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Side Shell 48.101 Special Order
2 Drum 48.102 Special Order
3 Kink Protector 40.162 Special Order
4 Plastic Screw, 5.0 x 20 43.018 9743018 Buy Now
5 Drive Shaft 48.104 Special Order
7 Left Bearing Block 43.810 Special Order
8 Screw, 6.0 x 30 43.423 Special Order
9 Right Bearing Block 43.811 Special Order
10 Ermeto Tube 49.014 9749014 Buy Now

Full Parts List >>
1122TST Primary parts diagram

Gun-Jet and Lance Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Gun-Jet Shell (Right and Left) 12.450 Special Order
2 Screw, 3.5 x 14 44.525 Special Order
3 Repair Kit for M2000 12.454 Special Order
18 O-Ring, 9.3 x 2.4 13.273 9713273 Buy Now
19 Nipple, M22 x 1.5 AG / M12 x 1 13.363 9713363 Buy Now

Full Parts List >>
1122TST Primary parts diagram

Dirt Killer Nozzle Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Spray Body 41.520 9741520 Buy Now
2 O-Ring, 6.86 x 1.78 41.521 9741521 Buy Now
3 Nozzle Seat 41.522 9741522 Buy Now
4 Nozzle Insert, 042 41.523-042 9741523 Buy Now
5 Stabilizer 41.524 9741524 Buy Now
6 O-Ring, 16 x 2 40.016 1 97400161 Buy Now

Full Parts List >>
