1122TST Hose Reel Spare Parts

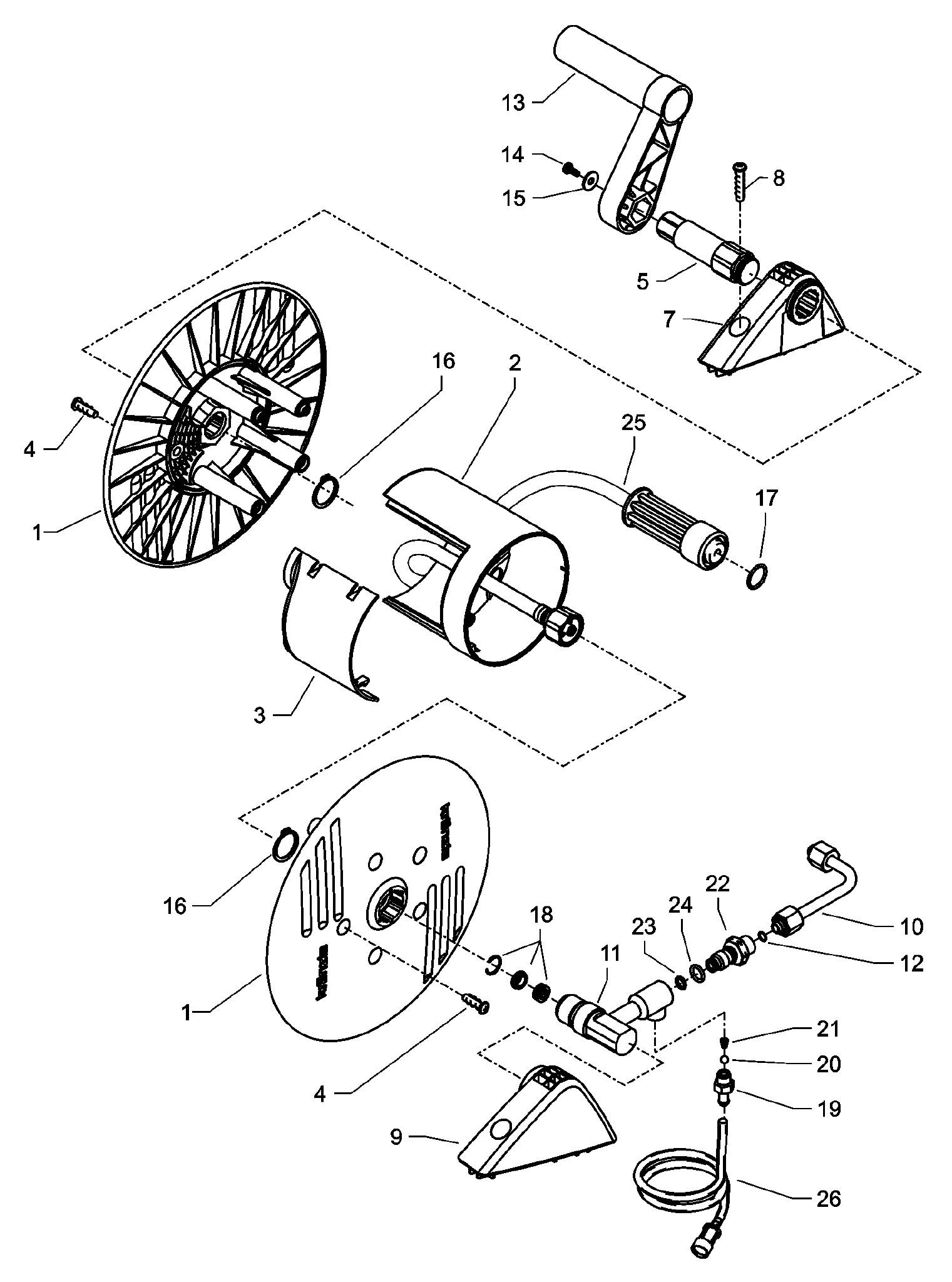

Diagram from page 38 of user manual - scroll down to match number to part

Manuals > 1122TSTHose Reel Spare Parts

Manuals   >   1122TST   >     Hose Reel Spare Parts

# Part Name German Part # Kranzle USA Part #
1 Side Shell 48.101 Special Order
2 Drum 48.102 Special Order
3 Kink Protector 40.162 Special Order
4 Plastic Screw, 5.0 x 20 43.018 9743018 Buy Now
5 Drive Shaft 48.104 Special Order
7 Left Bearing Block 43.810 Special Order
8 Screw, 6.0 x 30 43.423 Special Order
9 Right Bearing Block 43.811 Special Order
10 Ermeto Tube 49.014 9749014 Buy Now
11 Water Inlet 48.103 Special Order
12 O-Ring, 6 x 0.8 40.177 Special Order
13 Hose Reel Handle 48.108 9748108 Buy Now
14 Screw, M5 x 14 40.536 9740536 Buy Now
15 Washer, 5.3 50.152 9750152 Buy Now
16 Shaft Circlip, 22 mm 40.117 9740117 Buy Now

Manuals
1122TST  >   Hose Reel Spare Parts

Manuals  >  1122TST  >   Hose Reel Spare Parts

#Part NameGerman Part #Kranzle USA Part #
17O-Ring, 9.3 x 2.413.2739713273Buy Now
18Sealing Kit13.410 1Special Order
19Suction Spigot Hose Connection13.2369713236Buy Now
20Stainless Steel Ball, 5.5 mm13.2389713238Buy Now
21Stainless Steel Spring13.2399713239Buy Now
22Inlet Injector40.3179740317Buy Now
23O-Ring, 10 x 243.0689743068Buy Now
24O-Ring, 6.68 x 1.7840.585Special Order
25High-Pressure Hose, 50 ft48.0159748015Buy Now
26Chemical Suction Hose with Filter15.0389715038Buy Now
30Complete Hose Reel Assembly (without High-Pressure Hose)48.1009748100Buy Now
